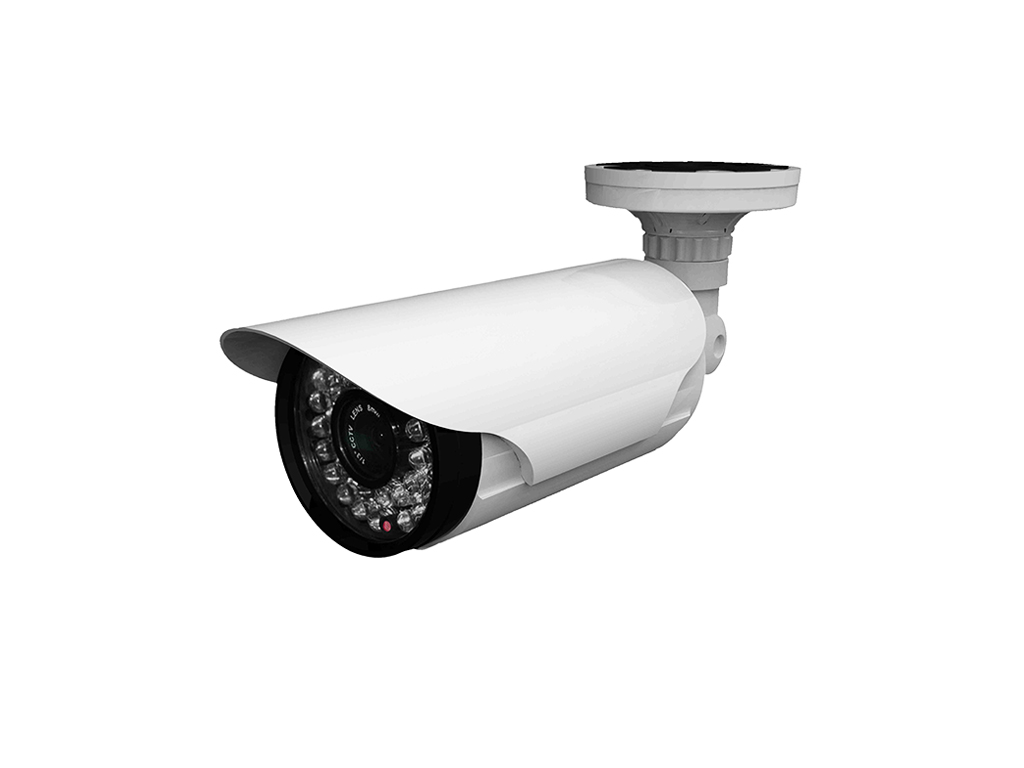

2.4 MP Full HD/ 2.8-12mm / Day Night 60m IR/POE – MXWAS2460P
- 2.4MP Full HD bullet camera for clear video quality
- Varifocal Lens 2.8 – 12mm Zooming Camera
- Dust and waterproof IP66 camera
- Digital WDR and BLC for better video quality
- Low bandwidth consumption to save Hard Disk space
- POE enabled
- Easily Mountable on walls or ceiling.
Technical Specifications
| Image Sensor | 1/2.8″ 2.4MP High-resolution CMOS Sensor |
| Main processor | 528MHz withH.264 encoding |
| Resolution | 1080P |
| Effective Pixels | 1920(H)*1080(V) |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec |
| Sync System | External |
| Usable Illumination | 0.01Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Focus Length | 2.8-12mm |
| Focus Control | Manual |
| Lens Type | Manual |
| Pixels | 3M Pixels |
| Infrared LED | ￠5X72PCS |
| Infrared Distance | 60M |
| IR Status | Under 10 Lux By CDS |
| IR Power On | CDS Auto Control |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| POE | Yes, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream | 1920*1080@30fps |
| Sub Stream | 704*576@30fps, 352*288@30fps |
| IE Brower | IE6-11, Google Chrome(IE Tab), Firefox(IE Tab) |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Day/Night | Color/ B&W (IR-CUT ) |
| Compression | H.264/JPEG,Support record AVI format. |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control) |
| BackLight Compensation | YES |
| WDR | YES |
| Low Bandwidth Consumption | YES |
| Denoise | YES |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/NAS/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian |
| Housing | Weatherproof , IP66 |
| Anti-cut Bracket | YES, 3-Axis |
| IR Cut Filter | YES |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 1000mA |
| Dimension | 312(W)x133(H)x101.5(D)mm |
| Weight | 1.8kgs |
More Information
This is a 2.4MP bullet camera which provides a crystal clear image and a full HD resolution and can be used to watch intricate details. This is a day and night camera and has a very powerful chip which supports features such as WDR and BLC. This camera has a low bandwidth consumption which occupies lesser space on the recording disk and thus saves your cost. IT has a varifocal lens which provides a provision to optically zoom in the camera. The camera also has a POE chip thus enabling a camera to be used in a POE network too.The camera comes with 72 powerful LEDs to provide a IR distance of 60m.
