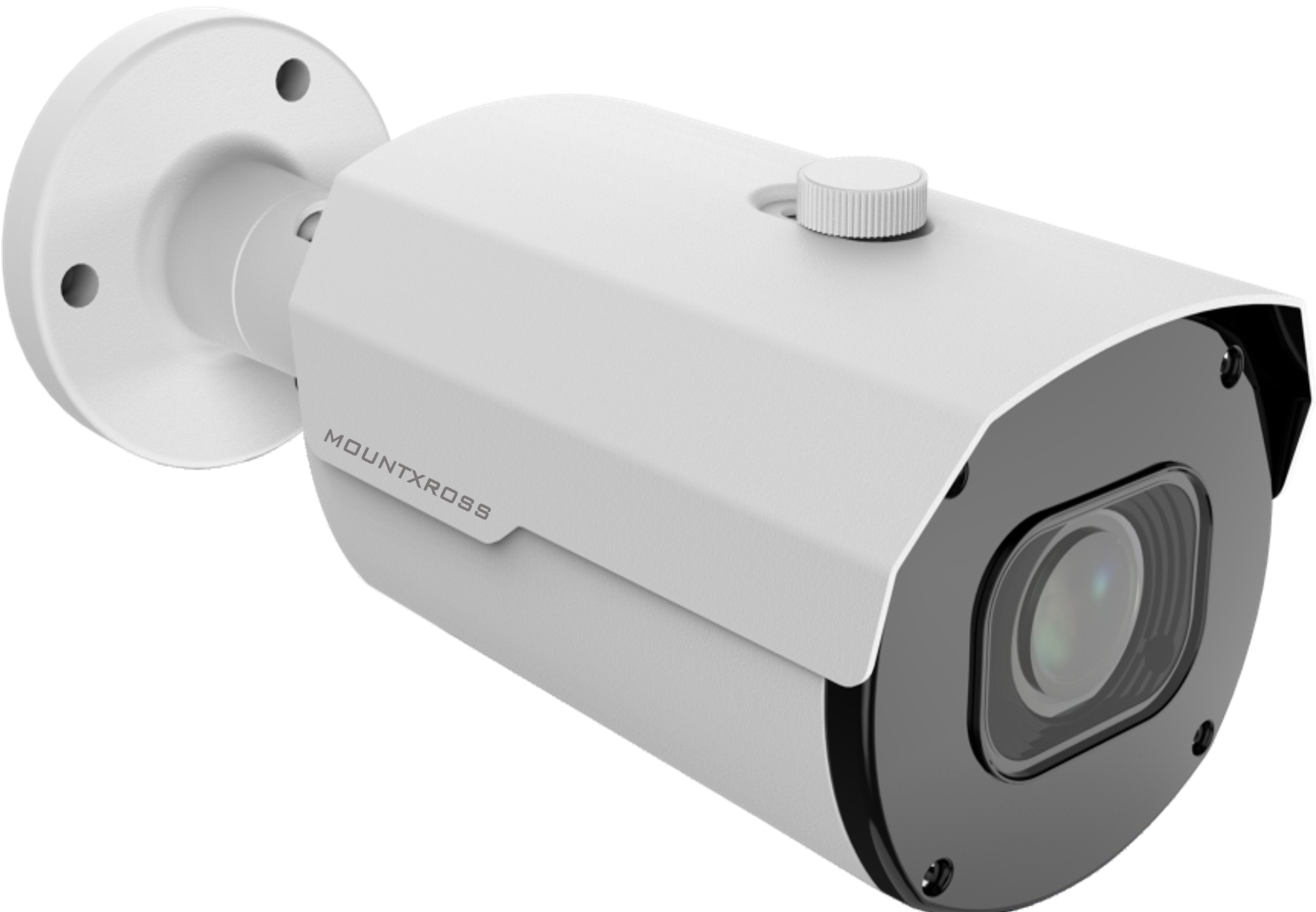

MXAZSVH2160
> 5 Megapixel, 1620P
> Progressive CMOS
> IR range up to 50 Mtr
> Triple streaming capability
> Focal Length: 2.8-12mm- Motorized lens
> 120dB WDR, 3D DNR, BLC, AGC
> Day & Night IR cut filter with auto switch
> Alarm: 1 In/Out, Audio: 1 In/Out
> Micro SD slot, up to 256GB
> Advance video analytics
SPECIFICATIONS |
|
MODEL NO. |
MXAZSVH2160 |
| VIDEO | |
| Imaging Device | 1/2.7” Image Processor |
| Effective Pixels | 5MP 2880（H）x1620（V） |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.004lux @ F1.6(AGC ON); B/W 0 lux @ IR ON |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8-12mm |
| Max. Aperture Ratio | F No. 1.8 (W) ~ 3.3(T) |
| Angular Field of View | Horizontal: 107-34°, Vertical: 55-19°, Diagonal: 134-38° |
| Min. Object Distance | 0.2M~INF |
| Lens Type | Motorized(Ø14) |
| OPERATIONAL | |
| IR Viewable Length | Up to 50m |
| Camera Title | On/Off |
| Day & Night | IR cut filter with auto switch (Day/Night/Auto/Image/Schedule |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | 120dB WDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | 1 input, 1 output |
| Audio | 1 input (RCA), 1 output (RCA) |
| Hardware Reset | Yes |
| Smart Feature | Face Detection, Human & Vehicle Detection, Perimeter Intrusion Detection, |
| Line Crossing Detection, Cross Counting, Stationary Object Detection, | |
| Heat Map, Crowd Density Detection, Queue Length Detection, License Plate | |
| Detection, Rare Sound Detection | |
| S/N Ratio | ≥55dB |
| NETWORK | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Mainstream@30fps – 5MP (2880×1620),4MP (2560×1440) 3MP (2304×1296), |
| 1080P(1920×1080) 720P(1280×720) | |
| Sub stream@30fps – 720P(1280×720), VGA (640×480), QVGA (320×240) | |
| Third stream@30fps – VGA (640×480), QVGA（320×240） | |
| Video Quality Adjustment | 256Kbps ~ 8Mbps |
| Bitrate Control Method | CBR/VBR |
| Streaming Capability | Triple-Stream (Main/Sub/Third) |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Web Browser | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above |
| Edge V.79 above | |
| Security | IP address filter; complicated password; Authenticated
username and password |
| Streaming Method | Unicast/Multicast |
| App. Programming Interface | ONVIF (Profile S/G/T) |
| ENVIRONMENTAL | |
| Operating Conditions | -35〜+60°C/less than ≤ 95% RH |
| Ingress Protection | IP67 |
| ELECTRICAL | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption (IR OFF) | 3W-4W |
| Power Consumption (IR ON) | 7W-9W |
| MECHANICAL | |
| Material | Metal |
| Dimensions (HxWxD) | 242*87.4*83.88mm |
| Weight | 811g |
| CERTIFICATIONS | CE, FCC, BIS |
More Information
The MXAZSVH2160 is an advanced artificial intelligence IP camera boasting an impressive 5MP resolution that provides a crystal-clear view for surveillance purposes. Its advanced AI features significantly enhance surveillance capabilities, making it more effective and robust.
